PP Pleated Filter Cartridge for water treatment / water processing

Update£º10/4/2018 5:35:09 AM>
  • Category   Water filter
  • Model
Products

¡¡¡¡

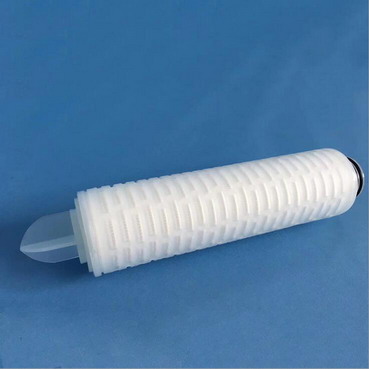

PP Pleated Filter Cartridge for water treatment / water processing

General Description
The PP Pleated Filter Cartridge delivers high efficiency and consistent filtration of fluids in a wide range of critical applications. They are constructed of pleated melt blown filter media that provides removal of particles from 0.1 to 50¦Ìm. The high surface area ensures long service life and low initial pressure drops. All cartridge hardware components are high purity polypropylene materials for use in critical process application. All the cartridges are manufactured and assembled in a clean room environment to minimize the possibility of contamination. Series cartridges are available in a while range of configurations to fit most commercially available filter housings.

Features

Excellent chemical compatibility. Suitable for filtering organic solvents, acid bases
Pleated design increased the filtration area.
low pressure drop, long service life
Full range of removal ratings
Graded pore density for high dirt holding capacity
FDA compliance material

Technical Specifications

Sizes 10¡±, 20¡±,30¡±40¡± Long
Micron Rating 0.1¦Ìm, 0.22¦Ìm, 0.45¦Ìm, 1¦Ìm, 3¦Ìm, 5¦Ìm, 10¦Ìm, 20¦Ìm , 50¦Ìm
Filtration Area More Than 0.7 m2 Per 10¡± cartridge
Outside Diameter 2.7¡± (69mm)
Inner Diameter 28mm
Maximum operating temperature 80¡æ@1Bar, support adaptors are recommended for temperature exceeds 50¡æ
Maximum operating pressure 4.0Bar ,normal temperature
Maximum operating pressure (Reverse Direction) 2.0Bar normal temperature
Maximum temperature sterilization 5times, 20 Minute cycles at 120¡æ
When filter the air pressure is 2 bar ,start pressure 100Mbar ,10"filter can flow 300NM3/h

Construction

Filter media Pleated depth Polypropylene(PP)
Support / Drainage Polypropylene(PP)
End cap Polypropylene(PP)
O-ring seal Silicone, EPDM, NBR, Viton, Teflon, E-FKM

Applications

Bottled water, Flavors, Polishing Lines
Base product clarifications, Membrane prefilter
Solvents, Process Streams, Water Purification
Dispersions, Coating Lines, Solvents
Water flood, Comletion Fluids, Amines
Alcohols, Essential oils , Water lines
Membrane Protection, Resin Trap
