100% China manufacturer produce pleated filter cartridge for water treatment
Update£º2/21/2022 11:01:53 PM>
- Category Water filter
- Model
Products
¡¡¡¡
The FILTEVER GEPP series adopts imported polypropylene filter element. With The high flow rate and high particle removal and pollution carrying capacity, it becomes the most economical filter element.

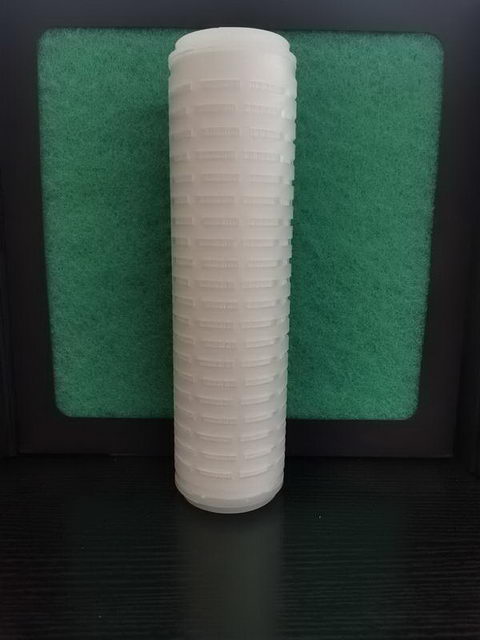

GEPP Series Pleated Depth Filter
Features
1. Broad chemical compatibility can be used for wide filtration
2. High flow rate and maximum pollution holding capacity
3. Pure Polypropylene with good performance
4. Inlet diversion layer to avoid fiber shedding
5. High retention efficiency provides excellent protection of downstream filter
Application
1. Industrial process water, Sterile water and Pure water
2. Food, Beverage, Alcohol filtration
3. Plating solutions
4. Media filtration
|
Filter Media |
polypropylene |
|
Layers |
polypropylene |
|
Inner core ,End cover and Outer cage |
polypropylene |
|
Micron rating |
0.1,0.2,0.45,0.65,1.0,3.0,5.0um |
|
Sealing Ring |
Silcon, EPDM, Fluororubber,NBR, Teflon |
|
Outer Diameter |
69mm |
|
Inner length |
33mm |
|
Length |
5",10",20" 30", 40", 50" |
|
Normal operating Temperature |
Up to 55¡æ |
|
Max. Operating Temperature |
80¡æ |
|
Max. Differential Press |
Normal Flow direction; 4.2 bar @ 25¡æ |
|
|
Reverse Flow direcetion: 2.1 bar@ 25¡æ |
