Sanitary grade stainless steel filter housing for food industry processing
- Category Filter Housing
- Model
¡¡¡¡

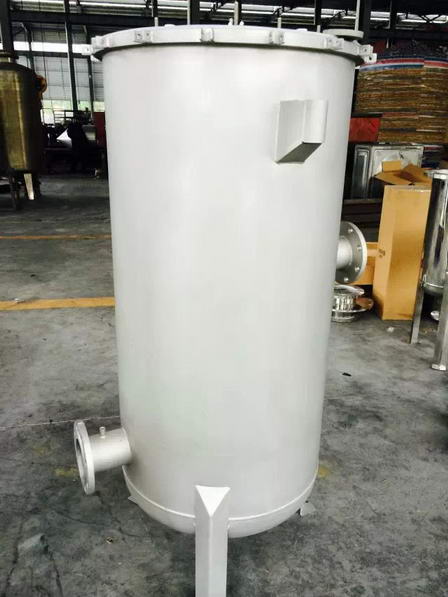

Sanitary grade stainless steel filter housing for food industry processing
Stainless steel SS filter housing available in 1, 3, 5, 7, 12 and 21 round models with swing bolt
closures are a proven design suited for high purity beverage. Inside of shell was mirror polished
with no roughness and sanitary dead corner. Gauge ports and drain ports are pre-tapped making
gauges and valves easy to install. The Filtration High Flow, sanitary filter housing has the unique
design of assuring the elements are seated in the mount receptacles before the closure can be
tightened. This prevents improper reseating of cartridges prior to being placed into service and
also keeps possible system back pressure from dislodging the elements from their respective seals.
Cartridge filter can be equipped with back wash valves and pipe for auto cleaning and back wash.
We could produce SS Filter housing according to customer's flowrate to design housing dimension
and choose the element number. Sanitary Filter are standard with 222/226 style cartridge adaptors
giving you a positive locking tab seal. This allows flexibility in one housing to use different cartridge
lengths and maximize filter performance and cost
Stainless Steel filter housing date sheet
Material: | High Quality Stainless Steel 304 or 316L |
Design Pressure: | 150 PSI (10 Bar) |
Work Temperature: | 110 Degree |
Cartridge Quantity | 1, 3, 5, 7, 9, 11, 12, 13, 15, 20, 30¡ ¡ 120 Round |
Cartridge Length | 5" , 10" , 20" , 30" , 40" |
Cartridge Adaptor | DOE, 222, 226 |
Inlet/Outlet: | Tri-Clamp,Flange,Threaded |
Gasket Material | SILICONE, EPDM, PTFE, VITON Etc |
Surface Finish: | Mirror Polish, Electrical Polish, Acid Washing, Sand Blast Etc |
Configuration: | CIP Spray Ball, Manhole, Liquid Level, Sampling Socket |
Temperature Gauge, Pressure Gauge, Adjusting Leg, Ladder etc. | |
Applications: | Food & Beverage, Wine Industry, Pharmaceutic, Chemical Industry etc |
