Replacement filter for Donaldson GDX GDS series Dust Collector Cartridge Conical filter / Cylindrical filter P19-1107 P19-1033 P19-1726 P19-1234 P19-1310
Update£º7/10/2015 9:33:28 PM>
- Category Air Filter
- Model
Products
¡¡¡¡

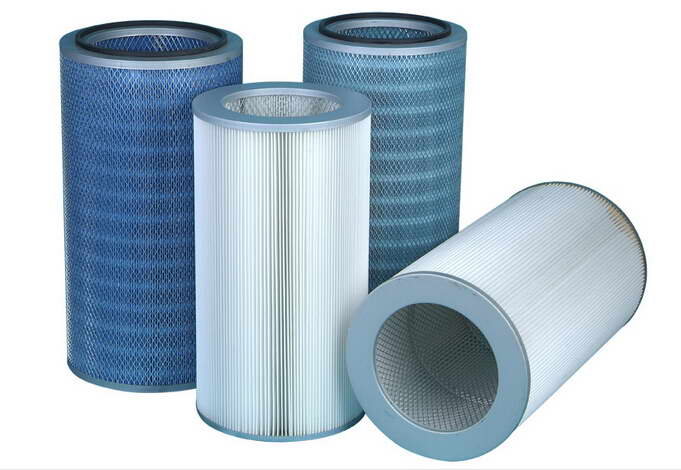

China Filtever Replacement filter for Donaldson GDX GDS series Dust Collector Cartridge Conical filter / Cylindrical filter P19-1107 P19-1033 P19-1726 P19-1234 P19-1310
| Brand: | Donaldson |
| Series: | GDX/GDS |
| Code Number: | P19-1033 |
| Type: | Cylindrical filter |
| Filter Media: | Synthetic |
| Length: | 26" (660mm) |
| OD: Large | 17.50"(445mm) |
| OD: Small | 12.75"(324mm) |
| Endcap: |
Galvanized metal with fiber media potted in plastisol |
| Gasket: | Seamless urethane |
| Liners: | Galavanized |
| Brand: | Donaldson |
| Series: | GDX/GDS |
| Code Number: | P19-1107 |
| Type: | Conical filter |
| Filter Media: | Synthetic |
| Length: | 26" (660mm) |
| OD: Large | 12.75"(324mm) |
| OD: Small | 12.75"(324mm) |
| Endcap: |
Galvanized metal with fiber media potted in plastisol |
| Gasket: | Seamless urethane |
| Liners: | Galavanized |
Product Details:
Adhesive: Thermosetting;
Bottom Cap: Zink electro plated;
Gasket: Poly Urethane Rubber;
Filter Media: Polyester media;
Basis Weight: 132gm/©O;
Polyester Percentage: 20%;
Fiber Percentage: 80%;
Mullen Burst Strength: 310 kPa (dry)/ 240 kPa (wet);
Stiffness: 3200 mg (MD), 770 mg (CD);
Permeability: 120 L/©O@ 20mmwG;
Max pore size: 48micron;
Cured Resin Content: 22%;
Max Air flow per Filter Cartridge set: 3200 m3/min;
Suggested Air flow per filter cartridge set: 2000-2200m3/h;
Coarse dust efficiency: 99.96%;
Fine dust efficiency: 98% down to 1micron;
Pressure drop on clean condition: 15 mmwc;
Pressure drop on clogged condition: 90mmwc;
Temperature Sustainability: 90 ¡æ;
Media velocity: 0.011 to 0.013m/s;
Surface area per filter set: 46©O;
Weight of the filter set: 16Kgms;
Our main product are oil filter, air filter, fuel filter. They can be the replacement filter for world famous brand product. For example: Pall, Hydac, Parker, York, Trane, MP, Donaldson, Schroeder, Internormen, PECO, Facet, Argo, Behringer, Cimtek, Denison, Donaldson, Eppensteiner, Fairey, Arlon, Filtrec, Fleetguard, Hy Pro, Hydac, INTERNORMEN, LHA, Luber, FINER, MAHLE, Moog, MP FILTRI, Normann, PARKER, Schroeder, Schupp, ST FILTER, Triboguard, Vickers, Zinga, etc...
We also make below items of filter:
P554685, P554770, P554860, P555001, P555003, P555006, P555010, P555020, P555060, P555095, P555150, P555461, P555570, P555616, P555627, P555680, P555823, P556001, P556005, P556007, P556064, P556219, P556245, P556285, P556286, P556287, P556700, P556745, P556915, P556916, P557153, P557264, P557380, P557382, P557440, P557500, P557780, P557826, P557841, P558000, P558010, P558250, P558329, P558467, P558600, P558615, P558616, P558712, P558792, P559000, P559100, P559418, P559550, P559740, P559803, P559850, P560527, P560971, P601881, P601882, P601883, P601884, P601885, P601886, P601887, P601889, P601903, P601909, P601912, P601920, P601924, P601925, P601928, P601929, P601930, P601932, P601933, P601934, P601935, P601936, P601938, P601942, P601943, P601946, P601947, P601975, P601979, P601980, P601981, P604197, P604273, P605022, P606063, P606082, P606086, P606087, P606091, P762904, P770181, P770678, P770960, P771003, P771073, P771508, P771521, P771522, P771523, P771524, P771529, P771531, P771549, P771555, P771557, P771558, P771561, P771573, P771575, P772506, P772522, P772523, P772524, P772530, P772531, P772536, P772545, P772550, P772552, P772555, P772556, P772567, P772578, P772579, P772580, P772581, P775300, P775302, P775339, P775631, P775704, P776158, P776159, P776386, P776694, P776695, P776696, P776697, P777241, P777279, P777408, P777409, P777487, P777551, P777579, P777638, P777639, P777732, P777767, P777868, P777869, P777871, P777875, P778124,P778335, P778336, P778339, P778404, P778509, P778605, P778637, P778638, P778984, P778994, P780006, P780030, P780036, P780321, P780522, P780523, P780621, P780622, P780623, P780815, P781039, P781098, P781351, P781398, P781399, P781470, P781471, P781740, P781746, P782106, P782857, P811004, P812363, P812559, P814456, P814457, P814459, P814749, P815288, P816691, P816773, P821575, P821883, P821908, P821938, P821963, P822686, P822768, P822769, P822858, P827653, P827655, P828889, P829332, P829333, P831520, P838813, P900247, P900763, R800103, R804759, X002102, X002225, X002250, X002251, X002252, X002254, X002277, X002278, X002320, X002351, X002352, X004476, X004478, X004536, X004538, X005832, X006136, X006202, X006203, X006204, X006244, X006245, X006246, X006247, X006249, X006251, X006252, X006253, X006254, X007036, X007099, X007100, X007297, X007785, X770075, X770088, P784473, P783198, P780848, P216197, P562309, X001746, X007037, P550758, P502107, P554206, P558425, P763873, P102052, P505957, P552563, P550042, P502194, P502058, P502039, P502193, P502200, P550408, P550973, P550718, P502202, P500063, P539470, P500064, P500020, P562725, P550256, P762921, P177295, B160071, M100695, P550042, P563299, P148646, G110214, G290023, 164583, P563229, P502270, P173739, P761490, P170598, P500060, P900632, P533231, P770829, K040675, P550529, P763264, P551236, P502303, P812042, P836938, P812900, P822143, P812362, P811312, P822144, P812317, P820635, G140445, P812042, P836938, P812900, P822143, P812362, P811312, P145700, P822144, P145702, P822145, P812317, P820635, P531017, P531518, P531520, P532473, P532474, P532499, P532500, P532501, P532502, P532503, P532504, P532505, P532506, P532507, P532508, P532509, P532510, P532925, P532926, P532927, P532928, P532951, P532962, P532966, P533109, P533110, P533599, P533653, P533654, P533781, P533856, P533882, P533884, P533930, P533938, P533946, P534096, P534104, P534105, P534433, P534434, P534435, P534436, P534470, P534885, P535089, P535114, P535115, P535362, P535365, P535396, P535398, P536429, P536434, P536457, P536492, P536940, P536941, P537451, P537452, P537453, P537454, P537876, P537877, P538007, P538008, P538455, P538456, P538532, P538559, P538611, P539422, P539472, P540388, P543107, P543615, P544477, P546613, P546614, P546641, P546761, P546762, P547167, P547331, P547332, P550008, P550010, P550012, P550015, P550016, P550020, P550021, P550026, P550028, P550032, P550034, P550035, P550037, P550040, P550041, P550043, P550044, P550047, P550048,
