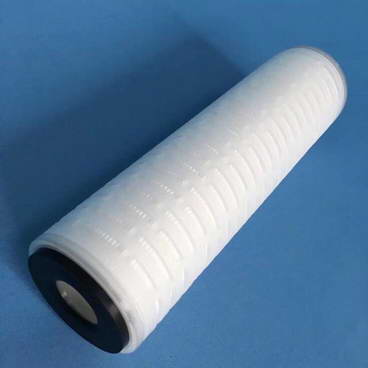

Polyethersulphone (PES) pleated membrane filter cartridge , 10 inch , 222 , 226 , DOE endcap.
Update：10/4/2018 5:33:40 AM>
- Category Water filter
- Model
Products
Polyethersulphone (PES) pleated membrane filter cartridge , 10 inch , 222 , 226 , DOE endcap.
Micron range from 0.04um to 3 micron.
Quick Detail:
- Name: PES filter cartridge
- Material of filter media: Imported Polyethersulphone (PES) Membrane
- Absolute / 0.04 micron water filter cartridge
- Mainly used for liquid filtration
- Removal Rating: 0.04-1 um
Application:
- Pharmaceuticals; APIs; Biologics;
- Fermentation Broths;
- Fine Chemicals;
- Food & Beverages, Wine, Beer, Mineral Water;;
- Semi-Conductor, LCD Display; Discs.
|
Material |
Membrane: |
Polyethersulphone (PES) membrane, |
|
Inner Core: |
Polypropylene |
|
|
Outer Core: |
Polypropylene |
|
|
Support Layers: |
Polypropylene |
|
|
O ring/Gasket: |
Silicone, EPDM, Buna , Viton, Teflon |
|
|
Specifications |
Pore size(um): |
0.04 |
|
Outer Diameter(OD): |
69mm (2.75") |
|
|
Inner Diameter(ID): |
33mm (1.30") |
|
|
Length(inch): |
5", 10", 20", 30", 40" (can be decided by client) |
|
|
Endcaps: |
DOE,SOE(215,214,226,222) |
|
|
Technical data |
Max differential pressure: |
4.2 bar (60 psi) at 25℃ (77℉); |
|
Max temperature: |
85℃ (185℉)at△P≤1.0 bar (14psi) |
|
|
PH value range: |
2-13 |
Competitive Advantage:
100% integrity test
more than 13 years of experience of manufacturing
Reasonable prices
SGS test
IFTA bacterial challenge test
Validation guide
