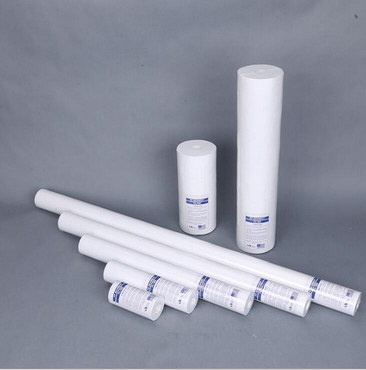

Melt-blown Filter Cartridge
|
|
Melt Blown Filter Cartridge is fusing and intertwined of polypropylene resin without any chemical glues. The cartridges are glued at random to form 3D micro pore which will make the cartridge 3 layers with fine fibers in surface and coarse fibers and deep filtration. As the fiber and density form high filtration rating and pollutants holding capacity on diameter of filter cartridge, low pressure drop, gradual changing deep filtration structure with loose outside and close inner, strong pollutants holding capacity, it can remove contaminant effectively, such as suspended substance, particulate and rust, providing efficient filtration and long service life.
|
|
Features
|
|
Three layers structure cartridge offers high dirt holding capacity,longerservice life
|
|
|
Formed by thermal bond without using any binders and adhesives.
|
|
|
100% Pure Polypropylene will not cause any pollution to water
|
|
|
Wide Chemical compatibility
|
|
|
Groove design to extend the filtration surface area.
|
|
|
All kinds of adaptors are available.
|
|
|
FDA compliance material
|
|
Technical Specifications
|
|
Sizes
|
10¨•, 20¨•, 30¨•, 40¨•, 50¨•, 60¨•
|
|
Micron Rating
|
1,3,5,10,25, 50,100,150 Micron
|
|
Standard Outside Diameter
|
63mm,115mm
|
|
Inner Diameter
|
28mm, 30mm
|
|
Maximum operating temperature
|
82¡æ
|
|
Maximum operating pressure
|
17 Bar
|
|
Maximum differential pressure
|
2.0 Bar at 21¡æ
|
|
Construction
|
|
Filter media
|
Filter media: Polypropylene, Bleached cotton
|
|
End caps
|
Core: PP, Stainless Steel
|
|
Cores
|
Outside diameter: 63mm,115mm
|
|
Gaskets/O-ring
|
Inner diameter: 28mm, 30mm
|
|
Applications
|
|
Food & Beverages
|
Bottled water, Flavors, Polishing Lines
|
|
Pharmaceuticals
|
Base product clarifications, Membrane prefilter
|
|
Fine Chemicals
|
Solvents, Process Streams, Water Purification
|
|
Magnetic coating
|
Dispersions, Coating Lines, Solvents
|
|
Petrochemicals
|
Water flood, Comletion Fluids, Amines
|
|
Cosmetics
|
Alcohols, Essential oils , Water lines
|
|
Water Treatment
|
Membrane Protection, Resin Trap
|
|
Metal Finishing
|
Plating solution, paint and resin products, Wash
|
|
Electronics
|
Electroplating, Etching, Image development
|
|
