Stainless Steel Bag Filter Housing
Update£º6/23/2015 12:42:15 AM>
- Category Filter Housing
- Model
Products
¡¡¡¡
China Professional Manufacturer Quality Stainless Steel Bag Filter Housing, SS Bag Filter
Product Description

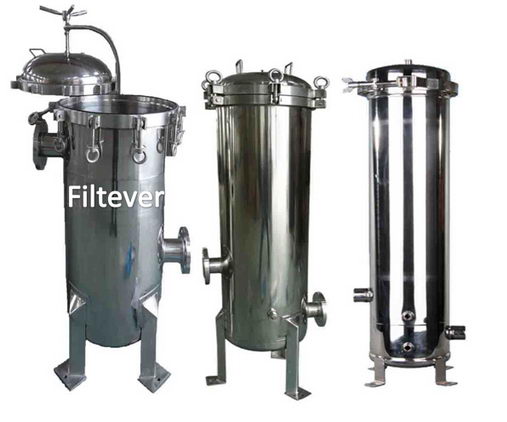

Stainless steel bag filter housings are particularly useful for filtering large volumes or high viscosity liquids.It consists of stainless steel housing, bag holder and filter bags.
Features & Benefits:
- High flow rates
- Stainless steel 304, 316L material
-
Single bag and Multi bag filter housing
- High temperature & High pressure design are available
- Wide range of bag size for choice
- Easy to clean
| Item | Flow rate(m3/h) | Filtration area(m2) | Diameter X Length | |
| Bag Size #1 | 20 | 0.25 | 180mm(7") X 410mm(16") | |
| Bag Size #2 | 40 | 0.50 | 180mm(7") X 810mm(32") | |
| Bag Size #3 | 6 | 0.10 | 102mm(4") X 210mm(8.25") | |
| Bag Size #4 | 12 | 0.15 | 102mm(4") X 356mm(14") | |
| Bag Size #5 | 25 | 0.30 | 175mm(6,7/8") X 870mm(34") | |
| *Size could be on your request | ||||
Specifications:
| Type | Model | Dimension(mm) | Connection | Bag | Flow rate(m3/h) | ||
| Diameter | Height | Size | Q'ty(pc) | ||||
| Single SS Bag Filter Housing | BJD1 | 220 | 550 | 2''Tri-Clamp(Coupling) / Flanged Type / Thread( NPT / BSP) | #1 | One | 20 |
| BJD2 | 220 | 950 | #2 | 40 | |||
| BJD3 | 130 | 650 | #4 | 12 | |||
| Multi SS Bag Filter Housing | BJD2-2 | 400 | 1550 | 3''Tri-Clamp(Coupling) / Flanged Type / Thread( NPT / BSP) | #2 | Two | 80 |
| BJD2-3 | 500 | 1550 | #2 | Three | 120 | ||
| BJD2-4 | 550 | 1550 | #2 | Four | 160 | ||
| BJD2-5 | 600 | 1550 | #2 | Five | 200 | ||
