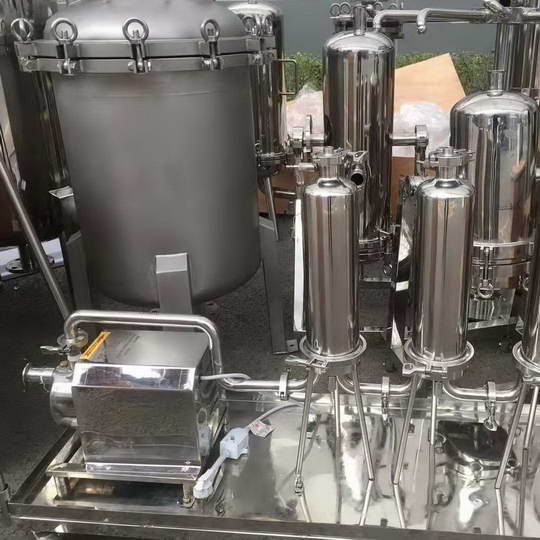

SS316L Sanitary Depth Stack Filter Housing for beer & wine filtration
- Category Filter Housing
- Model
¡¡¡¡
SS316L Sanitary Depth Stack Filter Housing for beer & wine filtration
Description:
Depth-Stack Filter Cartridges are a new type of filter cartridge using depth filter sheets. It is designed using a double separator concept.The Separator design increases the total stability of the filter cartridges as the separators fully support the sheet material.This design also prevents filter sheet deformities after heat treatments and adverse effects of contact with hot sanitation.It is manufactured with rigid external clips to prevent damaging filter sheets during module loading and unloading while allowing for easy and reliable handling.
Dimension | OD | 8 " , 12 " , 16 " , |
Material of Constructions |
Depth filter sheet | Cellulose fibers, Resins,Perlite, Natural diatomaceous earths, and etc |
Core | Polypropylene (PP) | |
Separator | Polypropylene (PP) | |
Double O-ring | Silicone, EPDM, Viton | |
Flat gasket | Silicone, EPDM, Viton | |
Construction | 7 Cell , 8 Cell , 9 Cell , 12 Cell , 14 Cell , 15 Cell , 16 Cell | |
Performance | Typical ratings | C002:0.2-0.4¦Ìm |
C004:0.4-0.6¦Ìm | ||
C100:1-3¦Ìm | ||
C150:2-5¦Ìm | ||
C200:3-7¦Ìm |
Lenticular Filter Housing Applications
Wine
Food &Beverage
Process Water
Pharmaceutical Liquids
Biotechnology & Laboratory
Medical &Medical Device
Chemical And Painting
